Roll to Roll Pouch Battery Hydraulic Calendering Machine with Winding & Unwinding Device

Name: Roll to Roll Pouch Battery Hydraulic Calendering Machine with Winding amp Unwinding Device
Brand: TICO
Price: 1 USD

Brand Name : TICO

Model Number : STC-DYG-300S

Place of Origin : Shenzhen, China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10 sets per month

Delivery Time : 15~ 20 working days

Packaging Details : Wood Packing

Product Name : Hydraulic Roll Press Machine

Pressing Pressure : Customizable

Pressing Speed : Max 6m/min

Roller diameter : φ200mm

Roller Width : 330mm

Installation size : L2500 x W1500 x H1300mm

Weight : 600kg

Contact Now

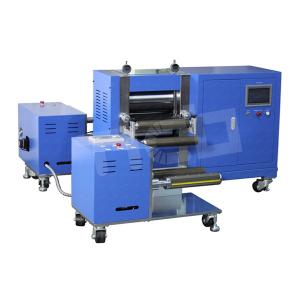

Roll to Roll Pouch Battery Hydraulic Calendering Machine with Winding & Unwinding Device

Brief Introduction

It is a hydraulic rolling press machine, which is used for battery electrode rolling press process. Winding&unwinding device is optional.

Features

• The pressing thickness is adjustable.

• It is designed with tension control.

• Winding&unwinding device with correction function.

• Touch screen control, high automation.

Technical Parameters

Model	STC-DYG-300S
Pressing pressure	Max 25T, customized pressure is available
Pressing speed	Max 6m/min
Roller diameter	φ330mm
Roller material	9Cr3Mo
Roller surface hardness	＞HRC65
Roller width	330mm
Pressing thickness	Max 2mm
Pressing accuracy	±1.5μm
Power supply	AC220V
Power	3KW
Installation size	L2500 x W1500 x H1300mm ( Roll press machine + winding & unwinding device )
Compressed air	0.5~0.8Mpa
Weight	≈ 600kg

Warranty

1 year's warranty with lifetime support.

FAQ

1. Are you a manufacturer ?

A: Yes, our factory is located in Shenzhen, China . We have more than 10 years experience for manufacturing battery lab research equipment .
We owns a professional R&D department.

2. Do you accept customized product ?

A : Yes. Most of our products can be customzied to meet different requirements.

3. Will you provide test video before dispatch?

A : Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service ?

A : Yes, we can dispatch professional engineer for on-site installation service.
